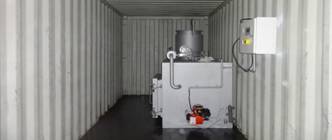

Containerized Medical Waste Incinerator Average 100kgs per hour

Main Characteristics:

1, Using fever of gasifying unites burning technology. It applied to burn various

kinds of medical waste, such as syringes, infusion set, disposable dressing, and also

small animal, some city waste, like paper, tree leaves.

2, Closed vacuum-wide operation, applicable to treat infectious medical waste and

to prevent secondary pollution.

3, Whole design, easy to transfer to different place.

4, Combustion burner from China or Italy.




Items/Model

CA100


Principle

Medical Waste Incineration Treatment

Burn Rate

Average 100 kg/hour

Feed Capacity

Average 200kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

1200L

Internal Dimensions

120x100x100cm

Secondary Chamber

600L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

0.7Kw

Oil Consumption (kg/hour)

14–28

Gas Consumption (m3/hour)

10–32.2

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

200L

Feed Door

80x60cm

Chimney

10Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800-1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

6000kg

External Dimensions

260x150x180cm
