1. Petrol: diesel
2. Consumption: 8-10liter/hour
3. Capacity: to cremate (carrion and spoils) 350-400kg/hour
4. Temperature: 900-1350?C
5. Operation temperature: -30~40?C
6. Incinerator weight: 1800-2000 kg
7. Volume: 0.70-0.80m/cube
8. Exterior dimension: 1.4-1.6*1.0-1.15m (L*W)
9. Trial able
10. Incinerator mouth size: 50-60cm (W), 65-75cm (L)
Ignition by Diesel
Minimum burning temperature 1200 Celsius
Burning capacity of 20 Tons per day.
Cooling by water
Burn Rate 100Kg/h
Shipping Weight 4000kg
Capacity 300Kg MINIMUM
Max. Burn out time 3.0 hrs.
Avg. Ash Residue 3%
Heavy Duty refracting lining to withstand 15000C
Min. Operating Temperature 8500C
Max. Operating Temperature 14500C
Residency Time in Secondary Chamber 2 sec.
Density Insulation (high) 22mm
Avg. Fuel Consumption p/hr 7 to 9ltr
Fuel Dual, box & Oil/Diesel
Temperature Monitoring YES
Auto ignition YES
Refractory Casting (min.) 65mm
Refractory Casting (min) 65mm

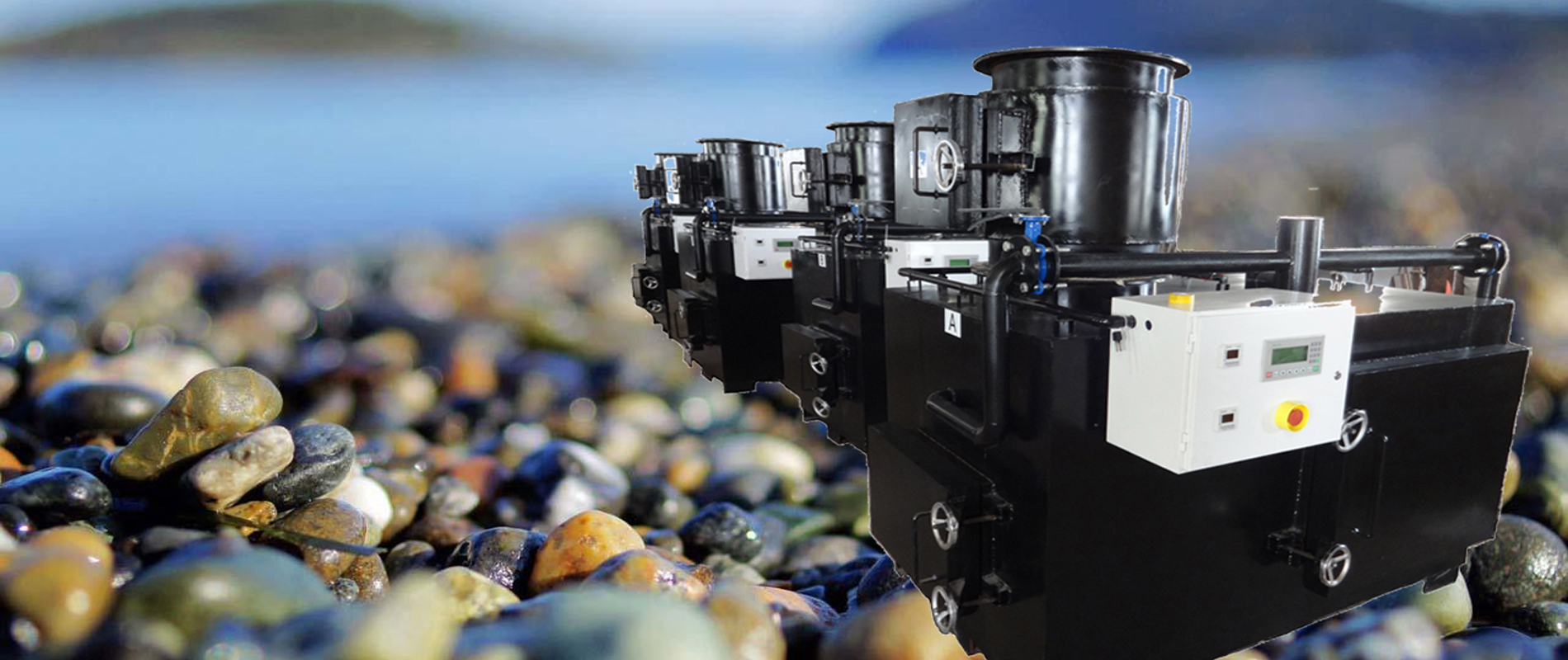

INCINERATORS
Biological waste disposal system (INCINERATOR).
Incinerator must meet the following specifications:
Combustion Capacity (kW) = 581 ±10%
Combustion Capacity (kcal/h) = 500,000±10%
Combustion Capacity – Solid waste IMO spec, (kg/h) = 100
IMO spec. (I/charge) Minimum Zero 0 to Maximum = 250
Combustion Capacity – Sludge oil IMO spec, (l/h) (at 20% water content) -66±10%
Max. l/h (at approx. 50% water content) = 100 ±10%
Weight approx. (kg) = 4,850 ±10%
